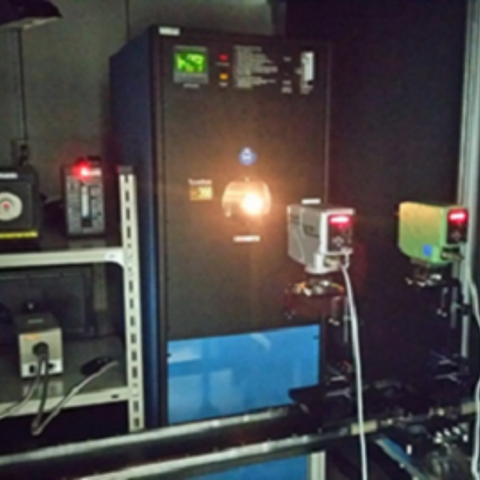

Calibration of our radiation thermometer is performed for the temperature display value that is intended for a radiation thermometer with a temperature display instead of an output voltage. The temperature range is 100℃ between 600°C and 2000℃, the wavelength is 0.9μm, and the monochromatic radiation thermometer of the silicon detecting element is the target.
| Calibration range | Expanded uncertainty (Confidence level of about 95%) |
|
|---|---|---|
| Display resolution 0.1℃ |
600℃ | 2.3℃ |
| 700℃ | ||
| 800℃ | 3.0℃ | |
| 900℃ | ||
| 1000℃ | ||
| 1100℃ | ||
| 1200℃ | ||
| 1300℃ | ||
| 1400℃ | ||
| 1500℃ | 3.5℃ | |
| 1600℃ | ||
| 1700℃ | 4.0℃ | |
| 1800℃ | ||
| 1900℃ | 4.5℃ | |
| 2000℃ | 5.0℃ | |
| Display resolution 1℃ |
600℃ | 3℃ |
| 700℃ | ||
| 800℃ | ||
| 900℃ | ||
| 1000℃ | ||
| 1100℃ | ||
| 1200℃ | ||
| 1300℃ | ||
| 1400℃ | 4℃ | |
| 1500℃ | ||
| 1600℃ | ||
| 1700℃ | ||
| 1800℃ | ||
| 1900℃ | 5℃ | |
| 2000℃ | ||
Calibration conditions
| Detector type | Silicon |
|---|---|
| Measurement wavelength | 0.9μm |
| Emissivity | 1.0 |
| Measured spot diameter | Below 10mm |
| Measurement distance | More than 350mm |
※Calibration may not be possible depending on the specification of the radiation thermometer. Please inform us of the specifications when inquiring.
