Metal sheathed resistance thermometer (RESIMIC®)

RESIMIC has a monolithic structure comprising of platinum resistance element and MI cable (MgO compacted, metal sheathed lead wires). This RTD has very quick response, longer service life and high accuracy under critical conditions.

“RESIMIC” and “レシミック” are registered trademarks of YAMARI INDUSTRIES, LIMITED (registered trademark 1176622).

Features

Fast response speed
RESIMIC® resistor is a one-piece resistor element, an insulating material, and a metal-sheath, making it more responsive than a conventional protective-tube RTD.
Excellent bending properties
Except for the end 100mm, which is the temperature-sensitive part, it can be bent with a radius at least twice the outer diameter of the sheathing.
Wide temperature measuring range
Temperature can be measured from-200℃ to 500℃, depending on the ambient conditions.
(Please consult us when using at operating temperature about 400℃ or higher.)

Applications

Electricity, gas
- Fluid temperatures such as cooling water, water supply, drainage, and oil
- Temperature of turbine casings, metals, bearings, etc.
- LPG, LNG temp.
Electrical and electronic
- Temperature of motor, transformer, coil of generator, insulating oil, etc.
- Temperature during the manufacturing process of transistors, integrated circuits, electronic tubes, etc.
Chemical
- Temperature of the reaction tower and reactor for gases and liquids
- Component temperature of chemical mechanical equipment
- Sulfidation temperature of rubber
- Temperature of plastic extruders and molding machines
- Temperature during the pharmaceutical pellet molding process
- Temperature during the synthetic fiber manufacturing process
Food products
- Temperature during refining sugar, meat, baking, confectionery, brewing and other food manufacturing processes

Specifications

Type	PT100Ω　JPT100Ω
Sheath outer diameter(mm)	φ3.2　φ4.8　φ6.4　φ8.0
Lead Connection	2-wire　3-wire　4-wire
Number of Element	Single　Double
Rated Current	0.5mA　1mA　2mA　5mA(JPT100 only)
Class	JIS classes A and B IEC A and B

※For sheath outer diameters other than those listed above, contact CKD for further information.

Temperature Classification	Operating Temperature Range
LL	-200 ~ Less than 40°C
ML	-40 ~ Up to 250°C
MH	~ Up to 400°C
HL	~ Up to 500°C
HH	~ Less than 650°C

※The above operating temperature range is our product temperature classification.

RMB type	Flexible Lead Type
RMES(L) type	Metal Connector Type
RMH type	Terminal Head Type
RMNB type	Screwed-in Plain Nipple Type
RMNF type	Flange (Ferrule) Type
RMP type	Wall-hanging Type (for room temp.)

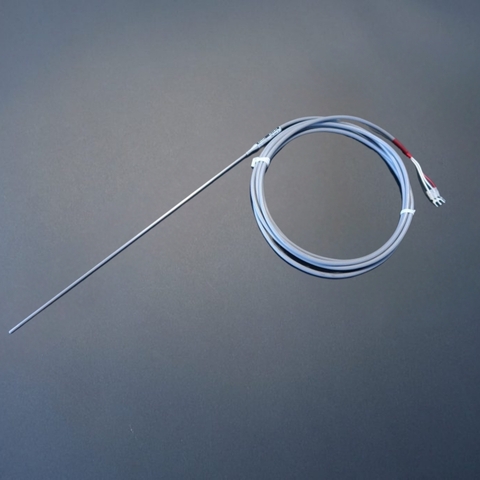

RMB type

Flexible Lead Type
