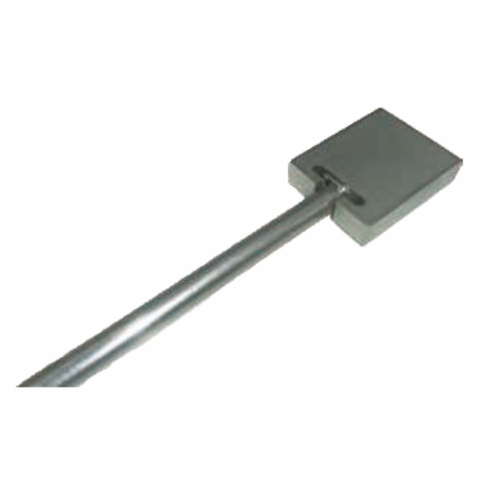

Sheath Thermocouple with Desorption PAD

Thể loại: Đang cập nhật

Mã: (Patent No. 6164381)

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

With the surface-type thermometer, the temperature sensing section at the end of the sheathing is attached to the tube using a PAD.
Generally, PAD is welded to the sheath at the time of shipping, and the long sheath interferes with the operation when PAD is welded to the tube at the site when the thermometer is installed.
In the detachable PAD type, PAD is welded to the tube first, and then connected to the sheath. This improves workability.

(Patent No. 6164381)

How to attach PAD and sheaths

Easy mounting in 3 steps

	① Weld pad in place!
	② Insert the sheath!
	③ Push with special tool!

Responsiveness is excellent!

Conventional type	Detachable PAD type
・The thermometer body is installed at the same time as PAD is mounted, so a long sheath is obstructed.	・Improve construction efficiency! 　Only the detachable PAD can be welded first. In this case, no curing of the thermometer body is necessary! 　Attach the sheath that interferes with the operation at the end! 　・Easy, one-touch mounting and dismounting by using a dedicated holder ・Temperature, thermal conductivity, and mechanical strength are comparable to those of the one-piece type. 　(PAD cannot be removed even in the tensile test of 1000N.) ・Easy removal (Easy to change the mounting position and disassemble due to easy sheath removal)

Conventional type

Detachable PAD type

・The thermometer body is installed at the same time as PAD is mounted, so a long sheath is obstructed.

・Improve construction efficiency!
　Only the detachable PAD can be welded first. In this case, no curing of the thermometer body is necessary!
　Attach the sheath that interferes with the operation at the end!
　
・Easy, one-touch mounting and dismounting by using a dedicated holder

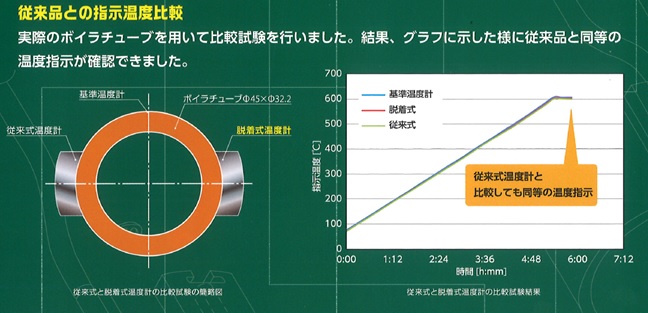

・Temperature, thermal conductivity, and mechanical strength are comparable to those of the one-piece type.
　(PAD cannot be removed even in the tensile test of 1000N.)

・Easy removal
(Easy to change the mounting position and disassemble due to easy sheath removal)
