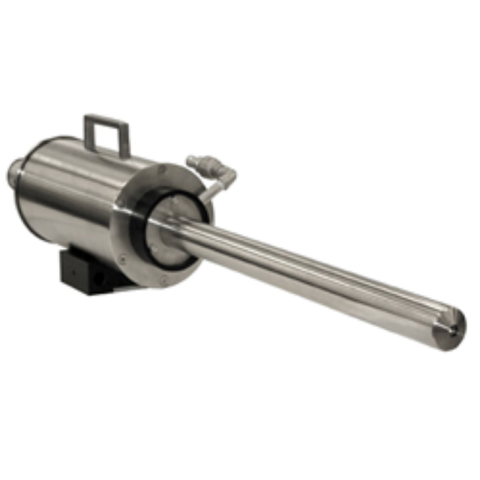

Combustion-imaging system BoilerSpection SD/MB

• Internal temperature monitoring of boilers, combustion furnaces, etc.

• Built-in thermal image camera (MC320)
  ・Wavelength: 3.9μm, 320×240 pixel, 30 frame /sec
• Borescore lens
  ・Measuring angle of view (FOV) is 50° or 75°.
  ・Camera-housing supports air cooling and IP65
• Installation type (SD) and portable type (MB) are available.
  ・SD is equipped with an auto-evacuation function to protect the camera in case of malfunction.
• Automatic retracting equipment
  ・Automatically retracts the camera to a safe position in the event of cooling water or power failure.
• Furnace wall box shutter system
  ・Place the shutter between it and the furnace.
• System features
  ・The image informs you of the boiler’s processing status.
  ・Increase combustion efficiency. Reduce maintenance costs.
  ・Optimize fuel switching.
  ・Manage combustion.
• LumaSpecR/T softwares
  ・Monitoring multiple cameras at the same time
  ・Advanced analysis
  ・OPC server available
  ・Analog and digital inputs and outputs are available.
• Ethernet communication
  ・A single server can connect up to 24 cameras.
• Application
  ・Boiler
  ・Internal temperature monitoring of combustion furnaces, etc.
