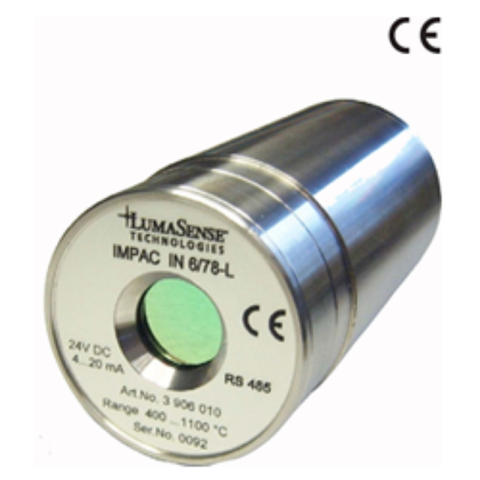

Digital Radiation Thermometer for Measuring Ultra-thin Glass Surfaces IN6/78-L

• Ultra-thin glass surface measurement

• Temperature measurement of ultra-thin glass of 1 mm or less
• Small spots: φ5/370mm
• High accuracy: 0.7% of measured value, or 3.5℃
• Minimum 51℃ Width Scaling Function Easy to Replace Conventional Models
• High accuracy and stability with digital circuitry
  　　Free temperature range scaling
• DC4～20mA power without a separate transducer
• RS485 interface enables long-distance communication with PC and PLC
• Built-in Maximum Value Holding Circuit: for measuring moving objects
• Compact design of φ50 x 115mm, body material uses SUS
• Data recording and parameter setting with the dedicated measurement software attached as standard
• Application
  　・Ultra-thin sheet glass less than 1mm.
  　・Surfaces of quartz glass, etc.

■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner

■Dedicated power BOX5000-001+ USB for radiation thermometer

• All cables are included.
• Easy wiring work due to connector connection
• With laser pilot light switch
• The case is made of aluminum diecast and has outstanding durability!
• Includes a RS485-USB converter for connecting PC’s USB port.
