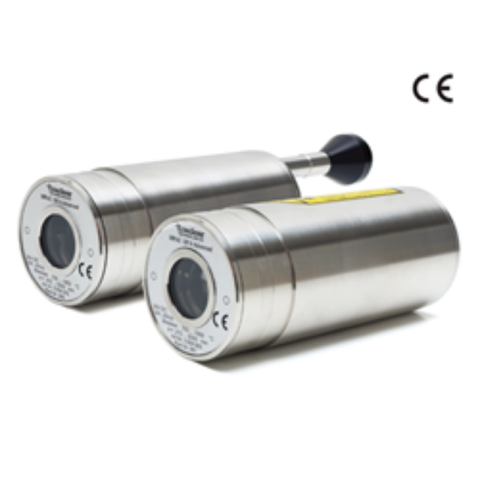

Digital Two-Color Radiation Thermometer IGAR6

Thể loại: Radiation thermometer and thermal image
Thương hiệu: YAMARI Việt Nam
Mã: Đang cập nhật
Tình trạng: Hết hàng

Chính sách bán hàng

  • Giao hàng trên toàn quốc
  • Hành chính hãng 100%, CO, CQ đầy đủ
  • Bảo hành & đổi trả do lỗi nhà sản xuất
Liên hệ
Số lượng:
YAMARI Việt Nam

Vận chuyển nhanh chóng

Hàng có sẵn tại kho
YAMARI Việt Nam

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng
YAMARI Việt Nam

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm
YAMARI Việt Nam

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình
LIÊN HỆ HỖ TRỢ
NHANH CHÓNG
Hỗ trợ trực tuyến
Để được hỗ trợ tốt nhất. Hãy gọi
Hoặc
Chat hỗ trợ trực tuyến
Chat với chúng tôi

Product name

Digital radiation thermometer

Model number

IGAR6

IGAR6 is a digital two-color radiation thermometer. A wide range is enabled by automatic switching between single color and two colors (smart mode).

Usage

  • Metal Fabrication
  • Semiconductor manufacturing process
  • Glass mold
  • Ceramic
  • Dissolved metal
  • Forging

Features

  • A wide range is enabled by automatically switching between single color and two colors (smart mode).
  • Fast Response: 2msec
  • Small spots:from φ2.1mm/210mm
  • Two-color measurement enables measurement in environments with lack of visual field or many particles
  • With 4-digit LED indicator
  • Adopted movable focus lens
  • Position check: Select from the following three methods.
    – Laser pilot light
    – Direct-view finder
  • Line spot model
    Enables measurement of widths and wire temperatures
  • Monitoring of dirt on window material
  • Switchable to monochrome mode
  • DC4~20mA power without a separate transducer
  • RS485 interface enables long-distance communication with PC and PLC
  • Built-in Maximum Value Holding Circuit: for measuring moving objects
  • φCompact design of φ50 x 127.5mm, body material uses SUS
  • Data recording and parameter setting with the dedicated measurement software attached as standard

Specifications

Temperature range MB 10 100 ~2000℃ : Smart mode (Automatic switching from one color to two colors)
100~2000℃ : monochromatic mode
250 ~2000℃ : two-color mode
Detection wavelength 1.5-1.6μm / 2.0-2.5μm

Basic system configuration diagram

Accessories

■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner

3834-210 LL shaped fittings

3835-160 Air purge unit

3846-590 For vacuum-furnace, with KF16 quartz-window

3837-230 Cooling jacket with purge

3820-330 Connecting-cable 5m with straight-type connector (in addition, 10m/15m/20m/25m/30m)
3820-340 Connecting-cable 5m with 3820-340 L connector. (10m/15m/20m/25m/30m)

3826-750 RS485-USB converter cabling

3843-490 Scanner SCA5



■Dedicated power BOX5000-001+ USB for radiation thermometer

  • All cables are included.
  • Easy wiring work due to connector connection
  • With laser pilot light switch
  • The case is made of aluminum diecast and has outstanding durability!
  • Includes a RS485-USB converter for connecting PC’s USB port.
