Product name

Digital two-color radiation thermometer

Model number

ISR320

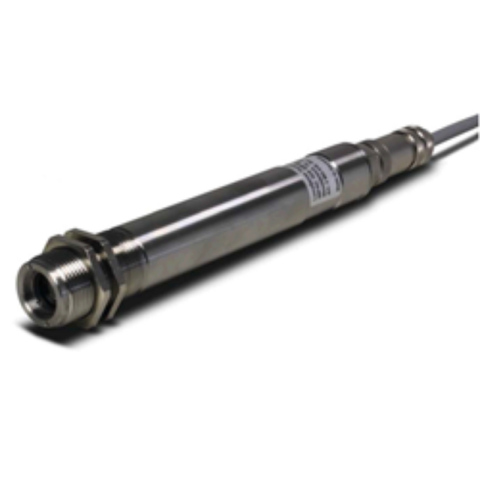

The Digital Two-Color Radiation Thermometer ISR320 is compact, lightweight and easy to install in limited spaces.

Usage

  • Temperature measurement of low emissivity objects
  • Temperature measurement in vacuum furnace over window glass
  • Temperature measurement of fast moving objects
  • Molten metal surface temperature measurement
  • Temperature measurement of micro-objects

Features

  • Small size, light weight and easy to install in limited space
  • Small spot measurement: from φ3 mm/300 mm
  • High-speed measuring: 10msec
  • High accuracy: 0.5% + 1°C (1300°C)
  • Analogue output is 0 to 20mA or 4 to 20mA current output
    Can be connected to standard instrument
  • Alarm contact output possible: for temperature monitoring and window material contamination monitoring
  • LED target light allows easy confirmation of measuring position
    Enables ON/OFF even during measuring
  • Wide range: Easy to replace conventional models with minimum 50°C wide scaling function
  • RS485 interface enables long-distance communication with PC and PLC
  • A RS485-USB converter is available for connecting to PC.
    Data recording and parameter setting with the measurement software supplied with the transmitter
  • RS485 interface for easy multi-point measuring
  • Application
    ・Metal Fabrication
    ・Semiconductor manufacturing process
    ・Glass mold
    ・Ceramic
    ・Dissolved metal
    ・Forging
    ・In a vacuum furnace

Specifications

Temperature range MB 7 700 ~ 1700°C
Detection wavelength 0.9 ~ 1.05μm

Basic system configuration diagram

Accessories

3834-230 Mounting bracket

3843-460 Scanning attachment SCA 300

3835-290 Air purge for scanning attachment

3835-180 Air purge

3835-240 For 90° mirror (with air purge) Type II

3826-510 LED Digital-Display DA 6000

3835-290/3890-290 Various power sources
NG 2D power supply /NG DC power supply

3826-720 RS485 ⇔ USB converter

PID programmable controller PI 6000 Connecting cable 2m (with straight connector);3920-030
Connecting cable 5m (with straight connector);3920-040
Connecting-cable 2m (with L-shaped connector);3920-130
Connecting-cable 5m (with L-shaped connector);3920-140
※Connecting cables are available in 5m up to 30m.


■Dedicated power BOX5000-001+ USB for radiation thermometer

  • All cables are included.
  • Easy wiring work due to connector connection
  • With laser pilot light switch
  • The case is made of aluminum diecast and has outstanding durability!
  • Includes a RS485-USB converter for connecting PC’s USB port.
