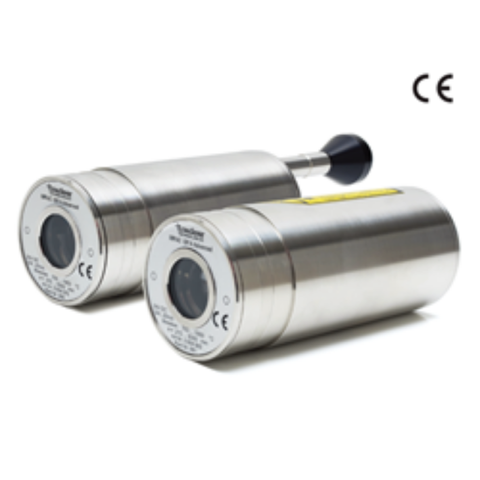

Digital Two-Color Radiation Thermometer ISR6・ISR6-TV

Thể loại: Radiation thermometer and thermal image
Thương hiệu: YAMARI Việt Nam
Mã: ISR6・ISR6-TV
Tình trạng: Hết hàng

Chính sách bán hàng

  • Giao hàng trên toàn quốc
  • Hành chính hãng 100%, CO, CQ đầy đủ
  • Bảo hành & đổi trả do lỗi nhà sản xuất
Liên hệ
Số lượng:
YAMARI Việt Nam

Vận chuyển nhanh chóng

Hàng có sẵn tại kho
YAMARI Việt Nam

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng
YAMARI Việt Nam

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm
YAMARI Việt Nam

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình
LIÊN HỆ HỖ TRỢ
NHANH CHÓNG
Hỗ trợ trực tuyến
Để được hỗ trợ tốt nhất. Hãy gọi
Hoặc
Chat hỗ trợ trực tuyến
Chat với chúng tôi

Product name

Digital radiation thermometer

Model number

ISR6・ISR6-TV

ISR6・ISR6-TV is a digitaltwo-color radiation thermometer. 2msec’s fast-response and movable focus lenses are used. Metal and two-color measurements enable measurement in environments with lack of visual field or many particles.

Usage

  • Metal Fabrication
  • Semiconductor manufacturing process
  • Glass mold
  • Ceramic
  • Dissolved metal
  • Forging
  • In a vacuum furnace

Features

  • Fast Response: 2msec
  • Small spots: from φ0.7mm/210mm
  • Two-color measurement enables measurement in environments with lack of visual field or many particles
  • With 4-digit LED indicator
  • Adopted movable focus lens
  • High accuracy: 0.3% of measured value + 2°C (<1500°C)
  • Wide range:
    Minimum 50°C Width Scaling Function Easy to Replace Conventional Models
  • Position check: Select from the following three methods.
    – Laser pilot light
    – Direct-view finder
    – Remote monitoring with video output type
  • Monitoring of dirt on window material
  • Switchable to monochrome mode
  • DC4~20mA power without a separate transducer
  • RS485 interface enables long-distance communication with PC and PLC
  • Built-in Maximum Value Holding Circuit: for measuring moving objects
  • Compact design of φ50 x 127.5mm, body material uses SUS
  • Data recording and parameter setting with the dedicated measurement software attached as standard
  • Application
     ・Temperature measurement of low emissivity objects
     ・Temperature measurement in vacuum furnace over window glass
     ・Temperature measurement of fast moving objects
     ・Molten metal surface temperature measurement
     ・Temperature measurement of micro-objects

Specifications

Temperature range MB 14 600 ~1400℃
MB 18 700 ~1800℃
MB 25 800 ~2500℃
MB 30 1000~3000℃
Detection wavelength 0.9μm / 1.05μm

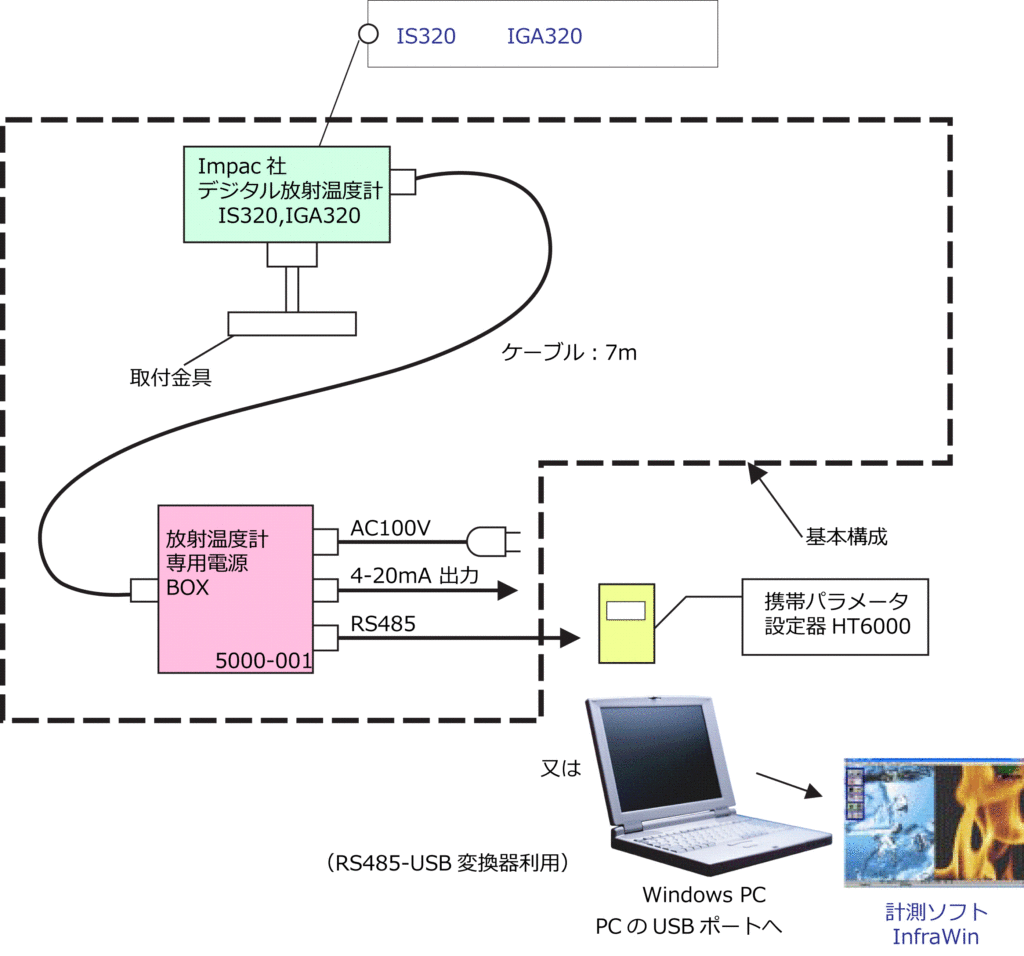

Basic system configuration diagram

Accessories

■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner

3834-210 L shaped fittings

3835-160 Air purge unit

3846-590 For vacuum-furnace, with KF16 quartz-window

3837-230 Cooling jacket with purge

3820-330 Connecting-cable 5m with straight-type connector (in addition, 10m/15m/20m/25m/30m)
3820-340 Connecting-cable 5m with 3820-340 L connector. (10m/15m/20m/25m/30m)

3826-720 RS485-USB converter cabling

3843-490 Scanner SCA5

3826-730 Video / USB converter

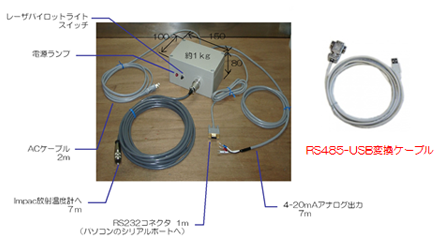

■Dedicated power BOX5000-001+ USB for radiation thermometer

  • All cables are included.
  • Easy wiring work due to connector connection
  • With laser pilot light switch
  • The case is made of aluminum diecast and has outstanding durability!
  • Includes a RS485-USB converter for connecting PC’s USB port.
