Mô tả

Product name

Fiber optic digital radiation thermometer

Model number

IGA320/23-LO

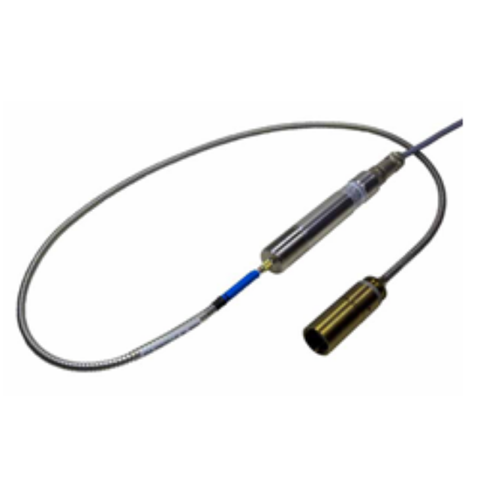

The Fiber Optic Digital Radiation Thermometer IGA320/23-LO is small, light and easy to install in limited spaces.

Usage

Suitable for non-contact temperature measurement of metals, ceramics, graphite, etc.
Metal mold, preheat, annealing, tempering, welding, forging, hardening, sintering, melting, soldering, rolling, brazing

Features

Small size, light weight and easy to install in limited space
Small-spot measuring: from φ0.8mm
High-speed measuring: 2msec
(Response time is automatically extended near the lower temperature limit.)
Heat-resistant design without cooling water
Alarm contact output possible: For temperature monitoring
Analogue outputs can be connected to 0 to 20mA or 4 to 20mA current outputs to standard instruments
Digital-signal-processing (DSP) enables high-accuracy (0.3%) and wide-temperature measuring
LED target light allows easy confirmation of measuring position
Enables ON/OFF even during measuring
Adopted measurement wavelength suitable for surface temperature measurement of metals, graphite, ceramics, etc.
RS485 interface enables long-distance communication with PC.
A RS485-USB converter is available for connecting to PC.
Data recording and parameter setting with the measurement software supplied with the transmitter
RS485 interface for easy multi-point measuring
Application
・Metal mold, preheat annealing
・Tempering, welding, forging and hardening
・Sintering, melting, soldering, rolling, and brazing

Specifications

Temperature range	MB 7	100 ～ 700℃
Temperature range	MB 12	150 ～ 1200℃
Detection wavelength	2 ～ 2.6μｍ

Basic system configuration diagram

Accessories

3834-230 Mounting bracket

3843-460 Scanning attachment SCA 300

3835-290 Air purge for scanning attachment

3835-180 Air purge

3835-240 90° mirror (with air purge) Type II

3826-510 LED Digital-Display DA 6000

3835-290/3890-290 Various power sources
NG 2D power supply /NG DC power supply

3852-610 USB-LabKit

3852-600 RS485 ⇔ USB converter

Connecting cable 2m（with straight connector）；3920-030
Connecting cable 5m（with straight connector）；3920-040
Connecting cable 2m（with L-shaped connector）；3920-130
Connecting cable 5m（with L-shaped connector）；3920-140
※Connecting cables are available in 5m up to 30m.

■Dedicated power BOX5000-001+ USB for radiation thermometer
