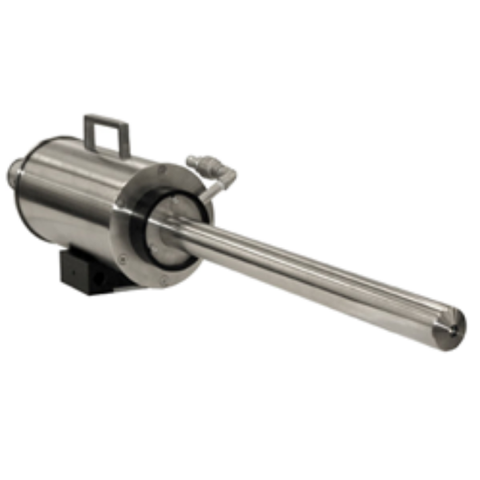

In-pile thermal imaging system FurnaceSpection SD/MB

• Built-in thermal image camera (MCS640)
  ・Wavelength: 0.85 micrometers, 640×480 pixels, 60 frame /sec
• Borescore lens
  ・The measured angle of view is 50° (H) x38° (V).
  ・Camera-housing supports air cooling and IP66
• Installation type (SD) and portable type (MB) are available.
  ・SD is equipped with an auto-evacuation function to protect the camera in case of malfunction.
• System features
  ・By monitoring the inside of the furnace, it is possible to carry out preventive maintenance of equipment.
  ・You can detect process anomalies in real time, quickly and accurately, and respond to many applications.
  ・It is useful for measuring the temperature of products heated by natural gas and the temperature of refractories using flexible software.
• LumaSpecR/T softwares
  ・Monitoring multiple cameras at the same time
  ・Advanced analysis
  ・OPC server available
  ・Analog and digital inputs and outputs are available.
• Ethernet communication
  ・A single server can connect up to 10 cameras.
• Application
  ・Temperature Monitoring of Piping in Petrochemical Plants
  ・In-furnace temperature measurement during smelting, glass and metal heat treatment
  ・Reduction of cycle time in metal annealing

■IR Camera
