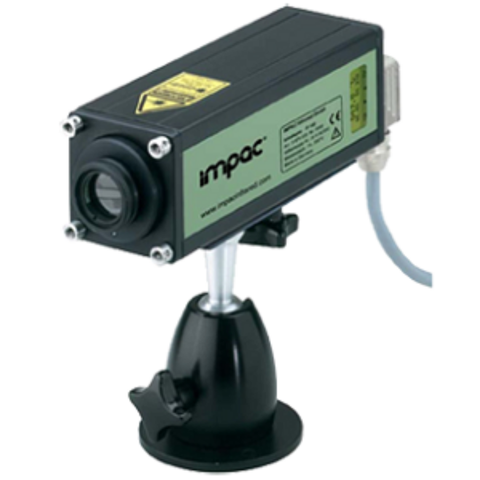

IPE140/45 for measuring CO2 combustion-gas temperature

Thể loại: Radiation thermometer and thermal image

Mã: IPE140/45

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Product name

For measuring CO2 burning gases

Model number

IPE140/45

CO2 combustion-gas thermometry IPE140/45 enables small-spot measurements even in distant locations.

Usage

Thermometry of Combustion Gases Containing CO2

Features

CO2 combustion-gas thermometry
10%CO2 density can be measured as 40cm as possible in the field of view
Small spot-measuring even at a distance: φ70 /8000mm
High-speed response: Response time can be set up to 1.5msec ～ 10sec
(However, near the lower temperature limit, the response time is automatically extended to reduce noise.)
Three types of movable focal lenses are available to optimize the spot diameter at any distance.
With LCD indicator, temperature indication can be checked on the main unit.
Parameters can be set on the main unit
Positioning with laser beam or direct-view finder
Measurement accuracy is 0.6% of measured value for 1300°C or less, and 0.8% of measured value for 1300°C or more.
Complete digital circuit provides excellent stability and noise immunity
Data recording and parameter setting with the dedicated measurement software attached as standard
Easy connection test with externally installed temperature indicator with test current output
RS232 and bus-connectable RS485 are also available for the interface.
Application
・Thermometry of Combustion Gases Containing CO2

Specifications

Temperature range	MB20	400 ～ 2000°C
Detection wavelength	High temperature burning CO2 absorbing wave length

Basic system configuration diagram

Accessories

■Mounting Bracket, Purge Pipe, Mirror, Scanner, Enhancer

3834-270 Ball and socket fixing bracket

3834-280-2 L shaped mounting bracket (tripod mountable)

3835-230 Air purge pipe

3837-240 Cooling plate

3837-290-1 Cooling jacket

3835-460 90° mirror (for IPE140)

3843-530 Scanner for 3843-530 IPE140(12°, with 5Hz,CaF2window)
3835-290 Air purge pipe for scanner

3827-200 Emissivity enhancer

3837-140 Ball and socket fixing bracket for cooling jacket

3835-160 Air purge unit for cooling jacket

3820-340 Connecting-cable 5m with L connector (Other 10m/15m/30m)
3820-330 Connecting-cable 5m with straight-type connector (other 10m/15m/30m)
3820-740 Connecting cable with heat-resistant straight type connector. Can be used up to 5m(200 °C)
3820-750 Connecting cable with heat-resistant L-connector Can be used up to 5m(200 °C)

■Dedicated power BOX5000-001+ USB for radiation thermometer
