Product name

Radiation thermometer for metal surface and quartz glass window

Model number

IGA140/23

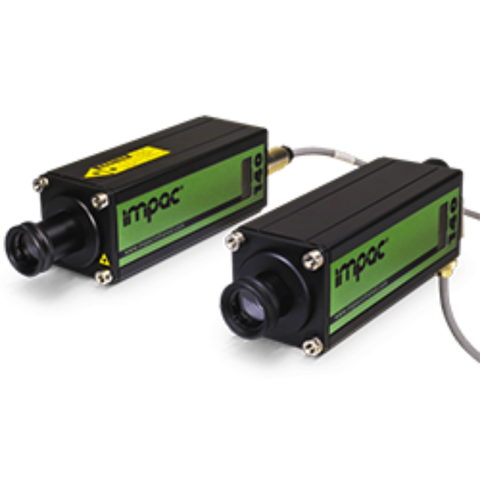

IGA140/23 employs a 2-2.6-μm detector and is a digital-radiation thermometer capable of measuring through metallic and quartz-glass windows.

High-speed response: Response time can be set up to 1.5msec ～ 10sec
(However, near the lower temperature limit, the response time is automatically extended to reduce noise.)
Small-spot measuring: from φ1.1/105mm
Three types of movable focal lenses are available to optimize the spot diameter at any distance.
With LCD indicator, temperature indication can be checked on the main unit.
Parameters can be set on the main unit
Positioning with laser beam or direct-view finder
Measurement accuracy is 2.5℃ for temperatures below 400℃, 0.3% + 2℃ for temperatures between 400℃ and 1500℃, and 0.5% of measured values for temperatures above 1500℃
Complete digital circuit provides excellent stability and noise immunity
Data can be recorded and parameters can be set using the dedicated measurement software attached as standard.
Easy connection test with externally installed temperature indicator with test current output
RS232 and bus-connectable RS485 are also available for the interface.
