Product name
Digital radiation thermometer
Model number
IGA6/23・IGA6/23-TV

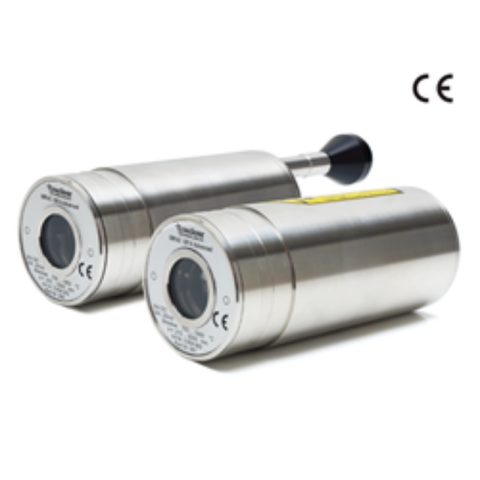

IGA6/23・IGA6/23-TV is a full digital radiation thermometer. RS485 interface enables long-distance communication with PC or PLC.
Usage
- Metal Fabrication
- Semiconductor manufacturing process
- Glass mold
- Ceramic
- Dissolved metal
- Forging
- Through the window in the vacuum furnace
Features
- High-speed response： 500μsec
- Small spots：from φ0.6mm/210mm
- Wide temperature measurement range
- With 4-digit LED indicator
- Adopted movable focus lens
- High accuracy：0.3% of measured value + 2℃（＜1500℃ ）
- Wide range：
Minimum 50℃ Width Scaling Function Easy to Replace Conventional Models - Position check: Select from the following three methods.
– Laser pilot light
– Direct-view finder
– Remote monitoring with video output type - DC4～20mA power without a separate transducer
- RS485 interface enables long-distance communication with PC and PLC
- Built-in Maximum Value Holding Circuit: for measuring moving objects
- Compact design of φ50 x 127.5mm, body material uses SUS
- Data recording and parameter setting with the dedicated measurement software attached as standard
- Application
・Temperature measurement of low emissivity objects
・Temperature measurement in vacuum furnace over window glass
・Temperature measurement of fast moving objects
・Molten metal surface temperature measurement
・Temperature measurement of micro-objects
Specifications
| Temperature range | MB 10 | 50 ～1000℃ |
|---|---|---|
| MB 13 | 75 ～1300℃ | |
| MB 18 | 150 ～1800℃ | |
| Detection wavelength | 2 ～ 2.6μm | |
Basic system configuration diagram
Accessories
■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner
|
3834-210-2 L shaped fittings |
3835-160 Air purge unit |
3535-440 Air purge unit2 |
3846-590 For vacuum-furnace, with KF16 quartz-window |
|
3837-230 Cooling jacket with purge |
3820-330 Connecting-cable 5m with straight-type connector (in addition, 10m/15m/20m/25m/30m) |
3826-720 RS485-USB converter cabling |
3843-490 Scanner SCA5 |
|
3826-730 Video / USB converter |
■Dedicated power BOX5000-001+ USB for radiation thermometer
- All cables are included.
- Easy wiring work due to connector connection
- With laser pilot light switch
- The case is made of aluminum diecast and has outstanding durability!
- Includes a RS485-USB converter for connecting PC’s USB port.
