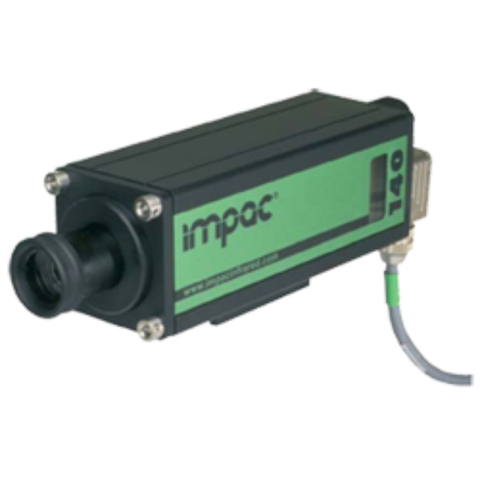

Radiation thermometer IN140/5 IN140/5-H IN140/5-L

Thể loại: Radiation thermometer and thermal image

Mã: IN140/5 - IN140/5-H - IN140/5-L

Tình trạng: Hết hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Product name

Digital radiation thermometer

Model number

IN140/5(40msec standard type)
IN140/5-H(10msec high speed type)
IN140/5-L(40msec small-spot type)

Usage

Compact and low cost. Ideal for device integration applications.
It is ideal for measuring quartz glass, various kinds of glass surface temperatures, glass forming, •flat glass manufacturing, light bulb manufacturing, and temperature measurement in automotive glass manufacturing.
A wide variety of accessories can be used for each application.

Features

For measuring the temperature of samples with severe temperature changes or moving at high speed because of fast response (fastest 10msec)
Minimal spot measurement is realized. Minimum φ0.9 /159mm.
Three types of movable focal lenses are available to optimize the spot diameter at any distance.
Positioning with the laser beam or direct-view finder is easy.
The perfect digital circuit provides excellent stability and noise immunity.
The main unit is made of SUS, so it can be used in harsh conditions on site.
Ambient temperatures up to 70℃ are supported.
The test current output function facilitates connection to an externally installed temperature indicator.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

Temperature range	IN140/5	250 ～ 1400℃, 300 ～ 1600℃, 450 ～ 1500℃, 500 ～ 2500℃
	IN140/5-H	250 ～ 1400℃, 300 ～ 1600℃, 450 ～ 1500℃, 500 ～ 2500℃
	IN140/5-L	250 ～ 1400℃, 300 ～ 1600℃, 450 ～ 1500℃, 500 ～ 2500℃ （IN140/5-L：450 ～ 1500℃／直視ファインダーは固定焦点のみ）
Detection wavelength	IN140/5	5.14μm
	IN140/5-H	5.14μm
	IN140/5-L	5.14μm

・The external dimensions of the main unit are the simple design of 195mm×56mm×62.5mm.
・The interface can also be switched to a RS485 with RS232 and bus-connectivity.
