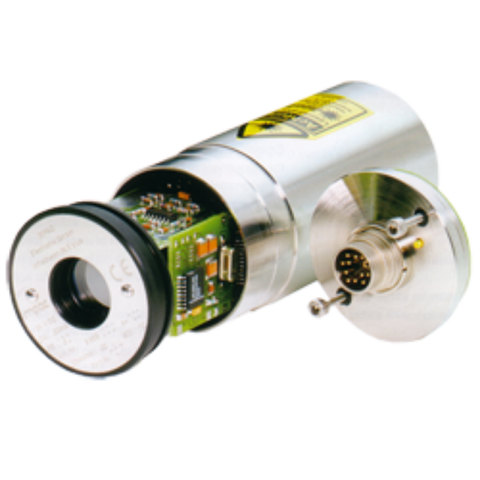

Radiation Thermometer IN5+ IN5-H+ IN5-L+

Thể loại: Radiation thermometer and thermal image

Mã: IN5+・IN5-H+・IN5-L+

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Product name

Digital radiation thermometer

Model number

IN5+・IN5-H+・IN5-L+

IN5 + Series is a fast-responding (fastest 10msec) digital-radiation thermometer.
With a detection wavelength of 8 to 14μm, temperature measurement of a wide variety of materials other than non-metallic surfaces is possible.

Usage

Low temperature digital radiation thermometer
Food, rubber, plastic, paper, printing, ceramic, painting, asphalt, fiber, wood, non-metallic objects
Suitable for measuring non-metallic surfaces.

Features

High-speed response (fastest: 10msec) is available, making it suitable for measuring the temperature of samples with severe temperature changes or moving samples at high speed.
Small spot measurement is realized, so even small samples can be measured. IN5-L + achieves a small spot-size of φ1/100mm.
Scales high accuracy and stability free temperature range in a fully digital circuit.
Easily locate with a laser pilot light.
It has a built-in maximum value holding circuit, so it is suitable for measuring moving objects.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

Temperature range	IN5+	-32 ～ 900℃
	IN5-H+	-32 ～ 900℃
	IN5-L+	0 ～ 900℃
Detection wavelength	IN5+	8 ～ 14μm
	IN5-H+	8 ～ 14μm
	IN5-L+	8 ～ 14μm

• The scaling function of the minimum 50℃ width enables replacement with the conventional model.
• Analogue output can be selected from current 0/4～20mA, voltage0 to 5V, and thermocouple J/K compatible output.
• An interface is a RS485 that can be connected to RS232 or busses. (Specified when ordering)
• Compact design of φ50 x 115mm (body material is SUS adopted)
