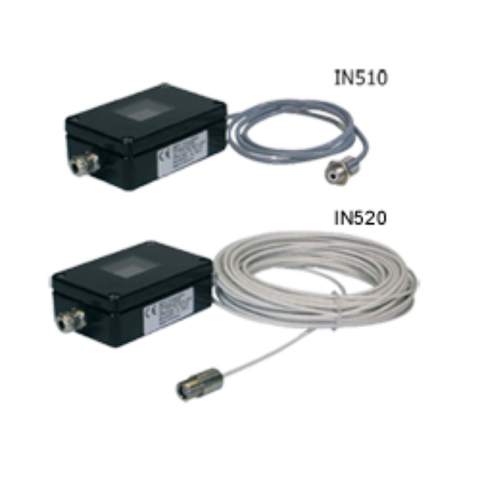

Product name

Low temperature digital radiation thermometer

Model number

IN510 IN520

IN510/IN520 has a detectable wavelength of 8 to 14μm and can measure the temperature of a wide variety of materials other than non-metallic surfaces, such as food, plastics, painted surfaces, asphalt/fiber, and wood.

Usage

Low temperature digital radiation thermometer
Ideal for temperature measurement of food, rubber, plastic, paper, printing, ceramic, paint, asphalt, fiber, wood, non-metallic objects, rotors, etc.
Suitable for measurements other than metal surfaces.

Features

The thermocouple J/K can be replaced with a thermocouple.
Equipped with relay contact output function suitable for temperature monitoring.
IN520’s sensor head is heat-resistant to 180℃, enabling temperature measurement in high-temperature environments.
Using an optional close-up lens, the lens can be narrowed down to the minimum φ2mm.
A LCD indicator is provided so you can check the temperature indication on the main unit.
Parameters can be set on the main unit. Basic measurements can be made only by supplying power.
The optional dedicated cable (with dedicated measurement software for Windows) enables parameter settings, real-time graphing, log data storage and display, and data transfer to Excel.
Types without indicator (IN510-N/IN520-N) are also available.

Specifications

Temperature range	-40 ～ 700℃
Temperature resistance of the sensor head	IN510:85℃ Heat resistance, IN520:180℃ Heat resistance.
Detection wavelength	8 ～ 14μm

・Analogue output can be selected from current 0/4～20mA, voltage0 to 5V, and thermocouple J/K compatible output.
・The scaling function of the minimum 50℃ width enables replacement with the conventional model.
・The interface can also be switched to a RS485 with RS232 and bus-connectivity.
