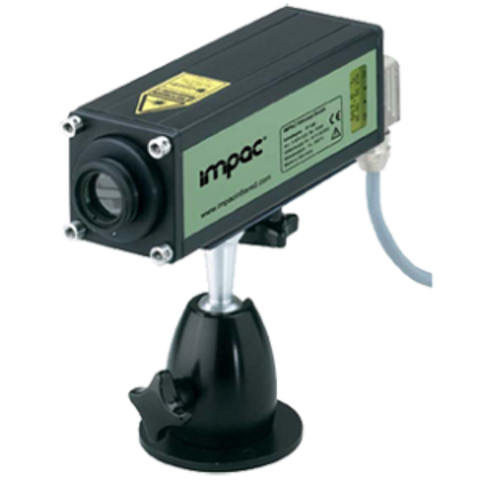

Radiation thermometer IP140 IPE140

Thể loại: Radiation thermometer and thermal image

Mã: IP140 IPE140

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Product name

Digital radiation thermometer

Model number

IP140 IPE140

IP140/IPE140 is a fast-response (fastest 1.5msec) full-digital radiation thermometer.
Temperature of various metal surfaces and machining processes can be measured with high accuracy by detection at short wavelengths.

Usage

Suitable for non-contact temperature measurements such as metal tube type, preheat, annealing, tempering, welding, casting, hardening, sintering, melting, soldering, rolling, brazing, etc.

Features

For measuring the temperature of samples with severe temperature changes or moving at high speed because of fast response (fastest 1msec)
Suitable.
(However, around the lower temperature limit, the response time is automatically extended to reduce noise.)
Four types of movable focal lenses are available to optimize the spot diameter at any distance.
A LCD indicator is provided so you can check the temperature indication on the main unit.
Parameters can be set on the main unit.
Basic measurements can be made only by supplying power.
Small-spot measurement (min. φ0.3mm/70mm) is realized, so even small samples can be measured.
The complete digital circuit provides excellent stability and noise immunity.
It has a built-in maximum value holding circuit, so it is also suitable for measuring moving objects.
The test current output function facilitates connection to an externally installed temperature indicator.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

The position can be checked with the laser beam or direct-view finder. (Specified when ordering)

Measurement accuracy	IP140	2℃ for temperatures below 400℃ and 0.3% + 1℃ of the measured value for temperatures above 400℃
Measurement accuracy	IPE140	2.5℃ for temperatures below 400℃ and 0.4% + 1℃ of the measured value for temperatures above 400℃
Temperature range	IP140	50 ～ 400℃, 75 ～ 550℃, 100 ～ 700℃, 160 ～ 1200℃, 200 ～ 1300℃
Temperature range	IPE140	5 ～ 500℃, 30 ～ 1000℃, 50 ～ 1200℃
Detection wavelength	IP140	2 ～ 2.8μm
Detection wavelength	IPE140	3 ～ 5μm
