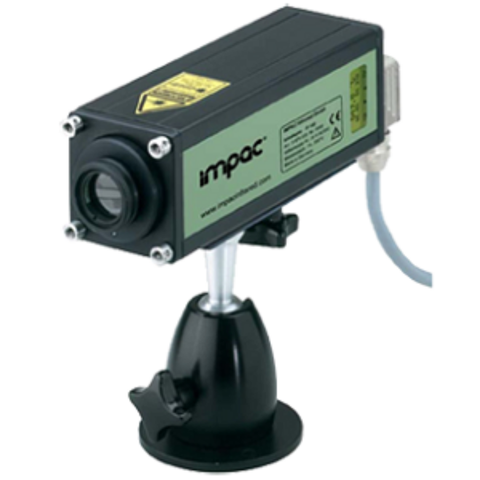

Radiation thermometer IPE140/34

Thể loại: Radiation thermometer and thermal image

Mã: IPE140/34

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Product name

Digital radiation thermometer for plastic film

Model number

IPE140/34

IP140/IPE140 is a fast-response (fastest 1.5msec) full-digital radiation thermometer. The 3.43-micron detecting wave length is used to precisely measure the surface-temperature of ultra-thin (PE) and poly-pylene (PP) films.

Usage

For measuring the surface temperature of plastic films
Ideal for temperature-measuring ultrathin polyethylene (PE) films and polypropylene (PP) films.
Suitable for film surface temperature measurement over 30μm thick.

Features

For measuring the temperature of samples with severe temperature changes or moving at high speed because of fast response (fastest 1msec)
Suitable. (However, around the lower temperature limit, the response time is automatically extended to reduce noise.)
Small spot measurement is realized, so even small samples can be measured.
A LCD indicator is provided so you can check the temperature indication on the main unit.
Parameters can be set on the main unit.
Basic measurements can be made only by supplying power.
The complete digital circuit provides excellent stability and noise immunity.
Three types of operating focal lenses are available to optimize the spot diameter at any distance.
The test current output function facilitates connection to an externally installed temperature indicator.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

The position can be checked using the laser beam or direct-view finder.

Measurement accuracy	2.5℃ for temperatures below 400℃ and 0.4% + 1℃ of the measured value for temperatures above 400℃
Temperature range	50 ～ 400℃, 75 ～ 500℃
Detection wavelength	3.43μm

・The interface can also be switched to a RS485 with RS232 and bus-connectivity.
