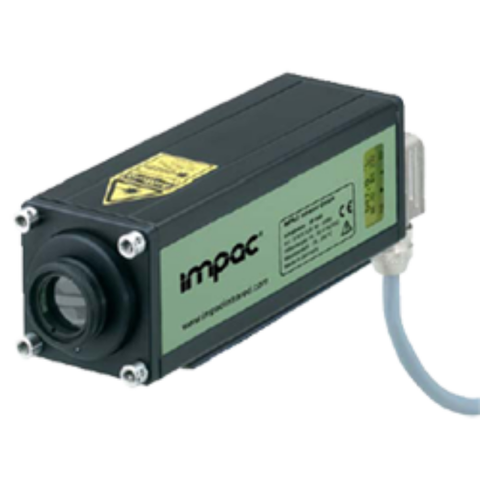

Radiation thermometer IPE140/39

Thể loại: Radiation thermometer and thermal image

Mã: IPE140/39

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Product name

Digital radiation thermometer for measuring through flame (frame)

Model number

IPE140/39

IPE140/39 is a digital radiation thermometer that uses a 3.9μm detector and can measure the flame-gas effect.

Usage

Ideal for temperature measurement through flames and combustion gases.
Ideal for measuring the temperature inside the glass.

Features

For measuring the temperature of samples with severe temperature changes or that operate at high speed because of the high-speed responsiveness of the maximum 1.5msec suitable.
Small spot measurement is realized, so even small samples can be measured.
A LCD indicator is provided so you can check the temperature indication on the main unit.
Parameters can be set on the main unit.
Basic measurements can be made only by supplying power.
The complete digital circuit provides excellent stability and noise immunity.
Three types of operating focal lenses are available to optimize the spot diameter at any distance.
The test current output function facilitates connection to an externally installed temperature indicator.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

The position can be checked using the laser beam or direct-view finder. (Specified when ordering)

Temperature range	20 ～ 700℃, 60 ～ 1200℃, 300 ～ 1450℃
Detection wavelength	3.9μm

・The interface can also be switched to a RS485 with RS232 and bus-connectivity.

Basic system configuration diagram

5/12/140 Series

Accessories

■Mounting Bracket, Purge Pipe, Mirror, Scanner, Enhancer

3834-270 Ball and socket fixing bracket

3834-280-2 L shaped mounting bracket (tripod mountable)

3835-230 Air purge pipe

3837-240 Cooling plate

3837-290-1 Cooling jacket

3835-460 90° mirror (for IPE140)

Scanner for 3843-530 IPE140 (12°, with 5Hz,CaF2 window）
3835-290 Air purge pipe for scanner

3827-200 Emissivity enhancer

3837-140 Ball and socket fixing bracket for cooling jacket

3835-160 Air purge unit for cooling jacket

Connecting-cable 5m with 3820-340 L connector. (Other 10m/15m/30m)
3820-330 Connecting-cable 5m with straight-type connector (other 10m/15m/30m)
3820-740 Connecting cable with heat-resistant straight type connector. Can be used up to 5m(200 °C)
3820-750 Connecting cable with heat-resistant L-connector Can be used up to 5m(200 °C)

■Dedicated power BOX5000-001+ USB for radiation thermometer
