Mô tả

Product name

High Accuracy Full Digital Fast Response

Model number

IS12 IS12-S IGA12 IGA12-S

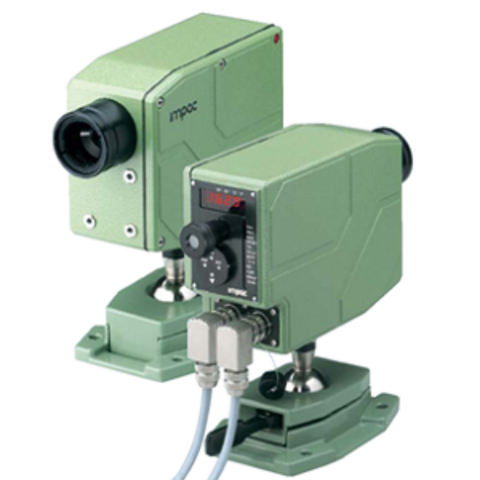

IS12・IS12-S・IGA12・IGA12-S is a full digital radiation thermometer.
High-speed 1msec and short-wavelength detection enable high-precision measurement of metallic, ceramics, graphite, and other temperatureswith high accuracy.

Usage

Suitable for non-contact temperature measurement of metals, ceramics, graphite, etc.
Preheat, annealing, tempering, welding, forging, hardening sintering, melting, soldering, rolling, brazing

Features

It can respond quickly (maximum 1msec), so it is suitable for measuring the temperature of a sample with severe temperature change or a sample moving at high speed.
Small spot measurement is realized, so even small samples can be measured. Minimum φ0.1.
The movable focus lens can be set to the optimum spot diameter at any position.
Scales high accuracy and stability free temperature range in a fully digital circuit.
It has a built-in maximum value holding circuit, so it is also suitable for measuring moving objects.
You can choose between a fixed focus lens and a movable focus lens
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.
All 12 series signals are processed digitally.
The signal entering the detector is immediately digitized and processed.
With this technology, the temperature range is wider compared to analog processing while maintaining extremely high accuracy and high reproducibility.
IS12-S, IGA12-S can scan the measured beams up and down.

Specifications

Temperature range	IS12/IS12S	550 ～ 1400℃、600 ～ 1600℃、650 ～ 1800℃、750 ～ 2500℃、550 ～ 2000℃、700 ～ 3500℃
Temperature range	IGA12/IGA12-S	250 ～ 1000℃, 300 ～ 1300℃, 350 ～ 1800℃, 400 ～ 2300℃., 250 ～ 1400℃
Detection wavelength	IS12/IS12S	0.7 ～ 1.1μm
Detection wavelength	IGA12/IGA12-S	1.45 ～ 1.8μm
