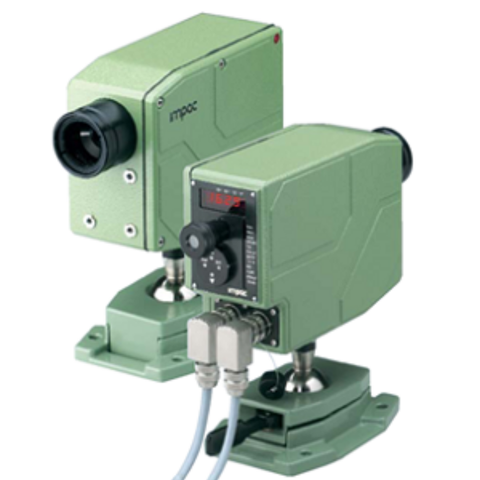

Radiation thermometer IS12-Si

• A radiation thermometer designed specifically for silicon wafers.

• Radiation thermometer dedicated to silicon wafers
• It can respond quickly (maximum 10msec), so it is suitable for measuring the temperature of a sample with severe temperature change or a sample moving at high speed. Response-speed can be set up to 10s.
• Small spot measurement is realized, so even small samples can be measured.
• With six fixed focus lenses and three movable focus lenses, accurate temperature measurement is possible.
• Scales high accuracy and stability free temperature range in a fully digital circuit.
• It has a built-in maximum value holding circuit, so it is also suitable for measuring moving objects.
• You can choose between a fixed focus lens and a movable focus lens.
• Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.
• The focus spot in the direct-view viewfinder allows you to accurately locate the position of the measurement target.
  Laser pilot lights for more accurate positioning are also optionally available.

・The interface can switch between RS485 that can be connected to RS232 or busses.

5/12/140 Series
