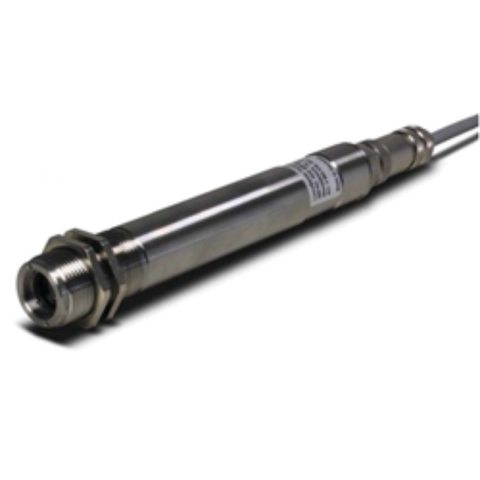

Radiation thermometer IS320・IGA320

• Ideal for measuring temperatures in metal processing, semiconductor production processes, glass molds, ceramics, molten metals, casting, vacuum furnaces, etc.

• Small and light, so it is easy to install in a limited space.
• It can respond quickly (maximum 2msec), so it is suitable for measuring the temperature of a sample with severe temperature change or a sample moving at high speed.
• Small spot measurement is realized, so even small samples can be measured. (from minimum φ1.2/250mm)
• The measuring position can be easily checked with LED target light.
• Scales high accuracy and stability, free temperature range with digital circuits.
• Data-recording and parameter setting can be performed with the optional dedicated measurement software (for Windows).
  – Emissivity
  – Temperature range Any scaling
  – Response time
  – Maximum value hold release time
• The ambient temperature can be used up to 70℃.
• The main body is made of SUS, so it is also compatible with harsh on-site environments.

・The scaling function of the minimum 51℃ width enables replacement with the conventional model.
・The current 0/4～20mA can be analog-output without a separate converter.
・RS485 (half duplex) interface enables long-distance communication with PC and PLC.

※Connecting cables are available in 5m up to 30m.
