Mô tả

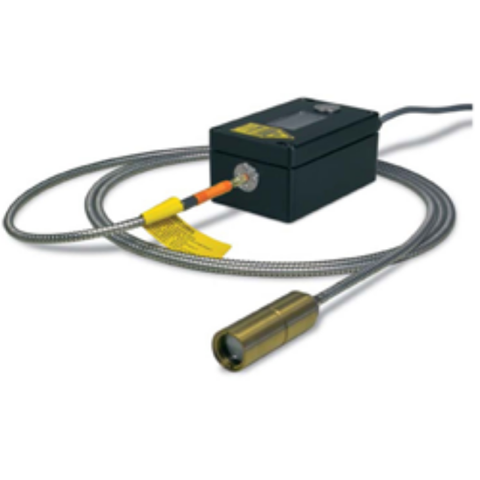

Product name

Fiber optic radiation thermometer

Model number

IS50-AL-LO+

IS50-AL-LO + is a fast-responding (fastest 1msec) fiber-optic radiation thermometer.
Aluminum temperature can be measured with high accuracy at the detection wavelength of near infrared.

Usage

Ideal for temperature measurement of aluminum surfaces.

Features

For measuring the temperature of samples with severe temperature changes or moving at high speed because of fast response (fastest 1msec)
Suitable.
Compatible with small spot measurement. Small samples can also be measured. 0.45 From φ /88mm.
A laser pilot button and temperature indicator are built into the main unit, and parameters can be set.
Adjustment on the site has become easier.
Eight lenses are available in two types. The measuring area covers 88mm～4500mm.
A movable focusing lens (TypeII) is used to optimize the spot diameter at any position.
It has a built-in maximum value holding circuit, so it is also suitable for measuring moving objects.
The laser pilot light makes it easy to check the measurement position.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

Temperature range	400 ～ 1000℃
Detection wavelength	Near infrared

・DC current 0 to 20mA/4～20mA can be selected for analogue output.
・The scaling function of the minimum 50℃ width enables replacement with the conventional model.
・The interface can also be switched to a RS485 with RS232 and bus-connectivity.
