Mô tả

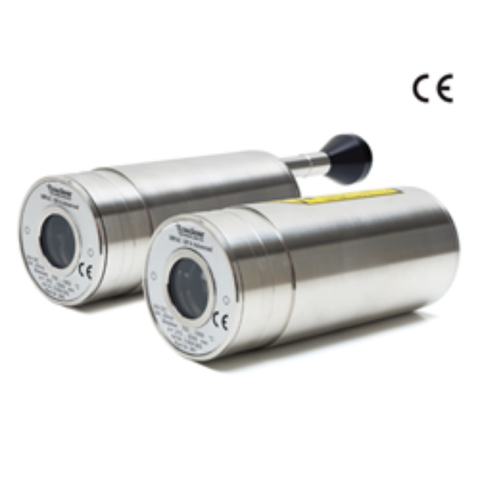

Product name

Digital radiation thermometer

Model number

IS6・IGA6 IS6-TV・IGA6-TV

IS6・IGA6 IS6-TV・IGA6-TV is a full digital radiation thermometer. High-speed response of up to 120μsec and movable focus lens are adopted. Temperatures of metals, ceramics, etc. can be measured with high accuracy.

Usage

Metal Fabrication
Semiconductor manufacturing process
Glass mold
Ceramic
Dissolved metal
Forging

Features

High-speed response: 120 μsec
Small spots: from φ0.6mm/210mm
With 4-digit LED indicator
Adopted movable focus lens
High accuracy: 0.3% of measured value + 2℃ (<1500℃)
Wide range:
Minimum 50℃ Width Scaling Function Easy to Replace Conventional Models
Position check: Select from the following three methods.
-Laser pilot light
-Direct-view finder
-Remote monitoring with video output type
DC4～20mA power without a separate transducer
RS485 interface enables long-distance communication with PC and PLC
Built-in Maximum Value Holding Circuit: for measuring moving objects
Compact design of φ50 x 127.5mm, body material uses SUS
Data recording and parameter setting with the dedicated measurement software attached as standard
Application
　・Temperature measurement of low emissivity objects
　・Temperature measurement in vacuum furnace over window glass
　・Temperature measurement of fast moving objects
　・Molten metal surface temperature measurement
　・Temperature measurement of micro-objects

Specifications

Temperature range	IS6	600 ～ 1800℃（MB18） 600 ～ 3000℃（MB30）
Temperature range	IGA6	250 ～ 1800℃（MB18） 250 ～ 2500℃（MB25）

Basic system configuration diagram

Accessories

■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner

3834-210 L shaped fittings

3835-160 Air purge unit

3535-440 Air purge unit 2

3846-590 For vacuum-furnace, KF16 quartz-window

3837-230 Cooling jacket with purge

3820-330 Connecting-cable 5m with straight-type connector (in addition, 10m/15m/20m/25m/30m)
Connecting-cable 5m with 3820-340 L connector. (10m/15m/20m/25m/30m)
