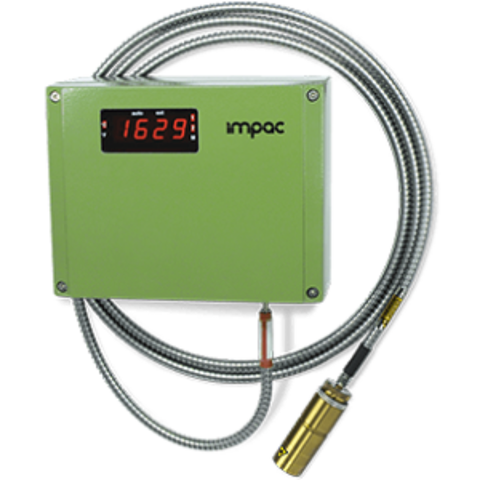

Radiation thermometer ISR12-LO/GS

• Lens: Because of the line spot, it is possible to reliably measure even when the workpiece position moves slightly.
  Two focal lengths are available: spot diameter = 100 : 5, 100 : 12
• Pouring Stream mode can be set
  (This is used to measure the stable temperature when the incoming molten metal passes over the line spot.)
• Fast Response: 2msec
  (However, near the lower temperature limit, the response time is automatically extended to reduce noise.)
• Metal mode in addition to 2-color and single-color modes.
  Ideal for measuring metal compounds whose K (ratio correction) value is unknown
• Small spots: from 17mm×1.6mm
• High accuracy: ±(0.4% to 0.6% of measured value + 1)℃
  (depending on model and temperature range)
• Analog/Digital Out: DC4～20mA/DC0～20mA + RS232C/RS485
• Built-in Maximum Value Holding Circuit: Ideal for measuring moving objects
• Positioning: Easy positioning with laser pilot light
• Heat-resistant design for cooling water: Heat-resistant fiber-optic cable at 250℃
• Data-recording and parameter setting with the attached dedicated measurement software (InfraWin)
• Easy connection test with externally installed temperature indicator with test current output
