Mô tả

Product name

Fiber-optic two-color radiation thermometer

Model number

ISR12-LO・IGAR12-LO

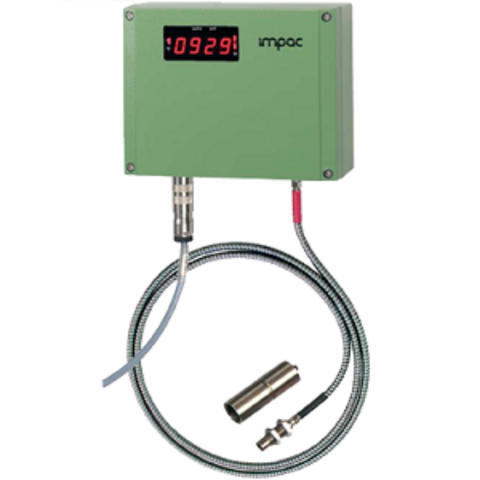

ISR12-LO・IGAR12-LO is a fiber-optic two-color radiation thermometer.
It has the fastest 2msec of fast-response, two-color/single-color mode, as well as metal mode, and supports various types of measuring with excellent performance and functions.
As a characteristic of the two-color system, it is possible to measure the temperature by ignoring the effect of emissivity, dust, and dirty window glass.

Usage

Metal mold, preheat, annealing, tempering, welding, forging, hardening, sintering, melting, soldering, rolling, brazing

Features

For measuring the temperature of samples with severe temperature changes or moving at high speed because of fast response (fastest 2msec)
Suitable.
(However, around the lower temperature limit, the response time is automatically extended to reduce noise.)
The K (ratio correction) value is unknown because of the metal mode in addition to the two-color and single-color modes.
Ideal for measurement of metal compounds, etc.
Small spot measurement is realized, so even small samples can be measured. From φ0.45/88mm.
Two types of lenses are available in a total of eight. Focal length covers 88mm～4500mm.
Movable Focus Lenses (TypeII) can be set to the optimum spot-diameter at any position.
It has a built-in maximum value holding circuit, so it is also suitable for measuring moving objects.
The laser pilot light makes it easy to check the measurement position.
It has a built-in maximum value holding circuit, so it is also suitable for measuring moving objects.
The test current output function facilitates connection to an externally installed temperature indicator.
Data-recording and parameter setting can be performed using the dedicated measurement software (for Windows) provided as a standard-attached product.

Specifications

Temperature range	ISR12-LO	600 ～ 1300℃, 750 ～ 1800℃, 900 ～ 2500℃, 1000 ～ 3300℃
Temperature range	IGAR12-LO	300 ～ 1000℃, 350 ～ 1300℃, 500 ～ 2200℃, 550 ～ 2500℃ The scaling function of the minimum 50℃ width enables replacement with the conventional model.
Detection wavelength	ISR12-LO	0.8/1.05μm
Detection wavelength	IGAR12-LO	1.52/1.64μm

・The interface can be switched between RS485 that can be connected to RS232 or busses.
・The temperature resistance of the lens and optical fiber is 250℃, and does not require cooling.
