Product name

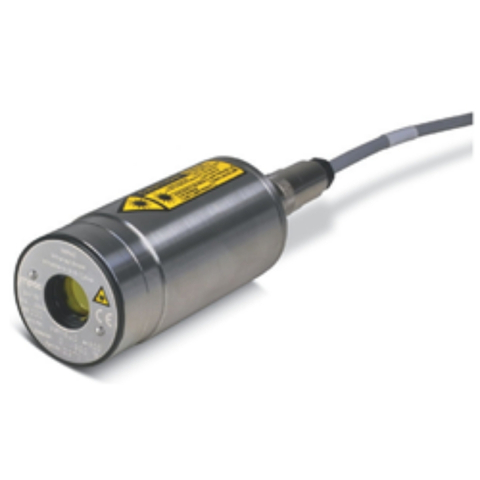

Sapphire glass temperature measurement
Model number
IN5/9+
Sapphire glass temperature measurement IN5/9+ is digital circuit with high accuracy and stability free temperature range scaling with digital circuit.
Usage
- Sapphire glass temperature measurement
Features
- Response time: 180msec
- Small spots: φ1.7㎜/95㎜
- High accuracy: 0.6％℃ of measured value
- Wide range:
Minimum 50℃ Width Scaling Function Easy to Replace Conventional Models - Position check: Laser pilot light for easy location confirmation
- High accuracy and stability with digital circuitry
Free temperature range scaling - DC4～20mA power without a separate transducer
RS232 or RS485 communication function - Built-in Maximum Value Holding Circuit: for measuring moving objects
- Compact design of φ50 x 115mm, body material uses SUS
- Data recording and parameter setting with the dedicated measurement software attached as standard
- Application
・Sapphire wafer
・Sapphire glass
Specifications
| Temperature range | 0 ～ 1500℃ |
|---|---|
| Detection wavelength | 8 ～ 9.7μｍ |
Basic system configuration diagram
Accessories
■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner
|
3834-210 L shaped fittings |
3835-160 Air purge unit |
3846-620 For vacuum-furnace, with CaF2 window |
3846-120 Ceramic protection tube with flange |
|
3846-100 Purge protection tube |
3837-370 Cooling jacket with purge |
5000-2001 JIS flange (as specified) with air purge |
3843-500 Scanner SCA5, with CaF2window |
|
3820-330 Connecting-cable 5m with straight-type connector (in addition, 10m/15m/20m/25m/30m) |
■Dedicated power BOX5000-001+ USB for radiation thermometer
- All cables are included.
- Easy wiring work due to connector connection
- With laser pilot light switch
- The case is made of aluminum diecast and has outstanding durability!
- Includes a RS485-USB converter for connecting PC’s USB port.
