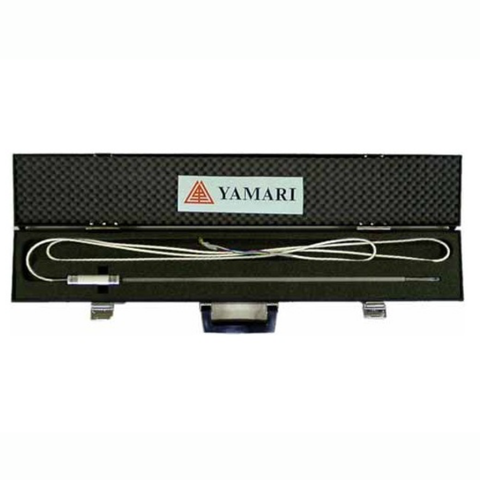

Standard Platinum Resistance Thermometer

Thể loại: Đang cập nhật

Mã: Đang cập nhật

Tình trạng: Còn hàng

Chính sách bán hàng

Giao hàng trên toàn quốc
Hành chính hãng 100%, CO, CQ đầy đủ
Bảo hành & đổi trả do lỗi nhà sản xuất

Liên hệ

Vận chuyển nhanh chóng

Hàng có sẵn tại kho

Bảo hành chính hãng

Chính sách bảo hành minh bạch theo tiêu chuẩn của hãng

Thủ tục thanh toán

Hợp đồng rõ ràng, yên tâm mua sắm

Hotline: 098 964 9965

Hỗ trợ quý khách hàng / đối tác nhanh chóng, tận tình

LIÊN HỆ HỖ TRỢ
NHANH CHÓNG

Để được hỗ trợ tốt nhất. Hãy gọi

098 964 9965

Hoặc

Chat hỗ trợ trực tuyến

Chat với chúng tôi

Mô tả

Model number

・MODEL BB660 / 25.5
・MODEL BB(S)962 / 2.5

The BB660/25.5 and BB(S)962/2.5 are single-coil standard platinum resistance thermometers developed and commercialized as interpolation instruments for The International Temperature Scale of 1990 (ITS-90) through joint research with the National Metrology Institute of Japan (NMIJ) of the National Institute of Advanced Industrial Science and Technology (AIST).
Single-coil standard platinum resistance thermometers have many features and advantages, such as a simple structure, low processing distortion during assembly, excellent vibration resistance, low self-heating, and good response characteristics.

Features

■Temperature range：
MODEL BB660 / 25.5 　-196°C – 660°C
MODEL BB(S)962 / 2.5 　660°C – 962°C

・The BB660/25.5 utilizes a new temperature sensing structure, taking advantage of the characteristics of the single coil type to improve stability at high temperatures and reduce costs.(registered trademark No. 3380523).
・The BB(S)962/2.5 uses single crystal sapphire for the protective tube and temperature sensor winding frame, which improves gas tightness and insulation properties and increases stability under high temperatures.

Specifications

	MODEL BB660 / 25.5	MODEL BB(S)962 / 2.5
Thermal Sensors	Non-inductive winding of platinum wire on a quartz winding frame (length ≦ 40 mm)	Non-inductive winding of platinum wire on a single crystal sapphire winding frame (length ≦40 mm)
Inner Conductor	Platinum wire (4-wire)	Platinum wire (4-wire)
Protective Tube	φ7mm × about 570mm (Adapter bottom length) / Quartz Tube	φ7mm × about 570mm (Adapter bottom length) / Single Crystal Sapphire
Adapter	φ19mm × about 100mm / Aluminum outer cylinder	φ19mm × about 100mm / Aluminum outer cylinder
External Conductor	Copper (4 wires), fluororesin insulation, cross-linked polyethylene coating; 2.5m	Copper (4 wires), fluororesin insulation, cross-linked polyethylene coating; 2.5m
Operating Temperature	-189.3442°C (Triple point of Ar) – 660.323°C (Freezing point of Al)	660.323°C (Freezing point of Al) – 961.78°C (freezing point of Ag)
