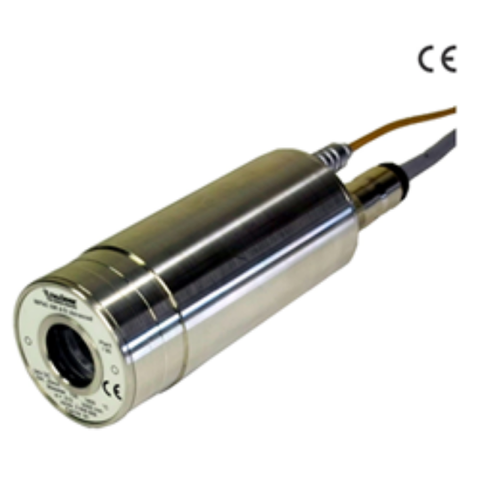

Two-color Thermometer with Two-color Corrected Thermal Image ISR6-Ti

• Temperature measurement of low-emissivity objects
• Temperature measurement in vacuum furnaces through window glass
• Temperature measurement of fast moving objects
• Temperature measurement of molten metal surfaces
• Temperature measurement of small objects

• Thermal image superimposed on a two-color thermometer
• Accurate temperature measurement is enabled without emissivity compensation.
• This single unit can perform conventional two-color spot measurement and thermal image measurement.
  Thermal image：Used by built-in video camera with infrared filter
  Two-color measurement：Temperature display on measurement spot circle
• thermal image
  Images are recorded in real time with dedicated software. Max 25Hz
  Image size：6.0° x 4.5° (When the measuring distance is 1000 mm, the size is 105 mm x 78 mm.)
• Two-color measurement
  High-speed response: 2msec
  Small spots: from φ1.1mm/210mm
  Two-color measurement enables measurement in environments with lack of visual field or many particles
• Monitoring of dirt on window material
• Temperature indicator on the rear of the main unit
• Adopted movable focus lens
• High accuracy: 0.3% of measured value + 2°C (<1500°C)
• Minimum 50°C Width Scaling Function
• Location is confirmed by the circle in the thermal image
• Switchable to monochrome mode
• Analog output: 0/4 to 20 mA DC output
• RS485 interface enables long-distance communication with PC and PLC
• Built-in Maximum Value Holding Circuit: for measuring moving objects
• Compact design of φ50 x 115mm, body material uses SUS

• Application:
  • Melting Furnace
  • Workpiece temperature in vacuum furnace
  • Welding
  • Induction heating
  • Sinter
  • Glass gob
  • Sapphire crystal growth
  • Incinerator

■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner

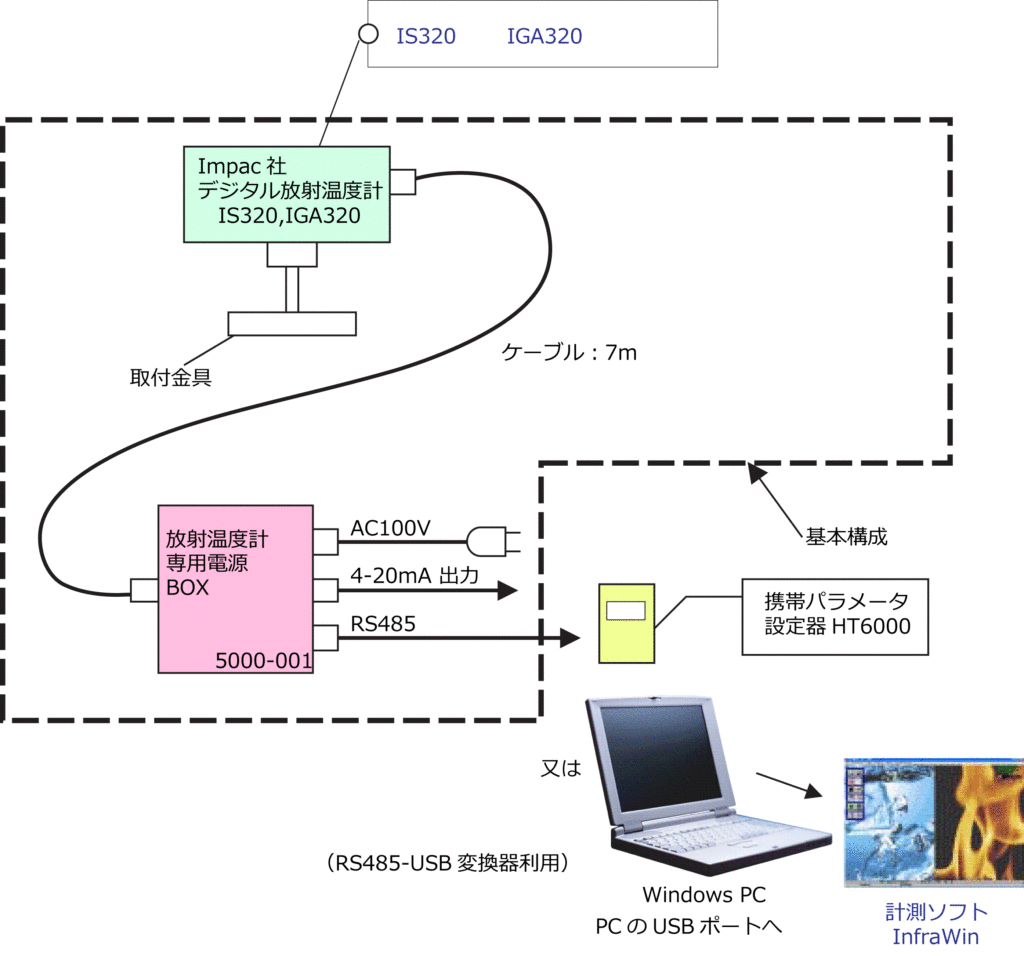

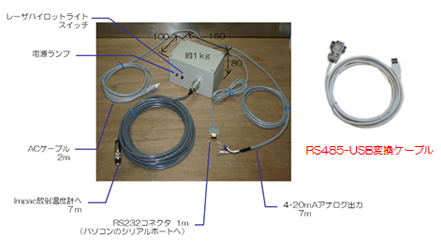

■Dedicated power BOX5000-001+ USB for radiation thermometer

• All cables are included.
• Easy wiring work due to connector connection
• With laser pilot light switch
• The case is made of aluminum diecast and has outstanding durability!
• Includes a RS485-USB converter for connecting PC’s USB port.
